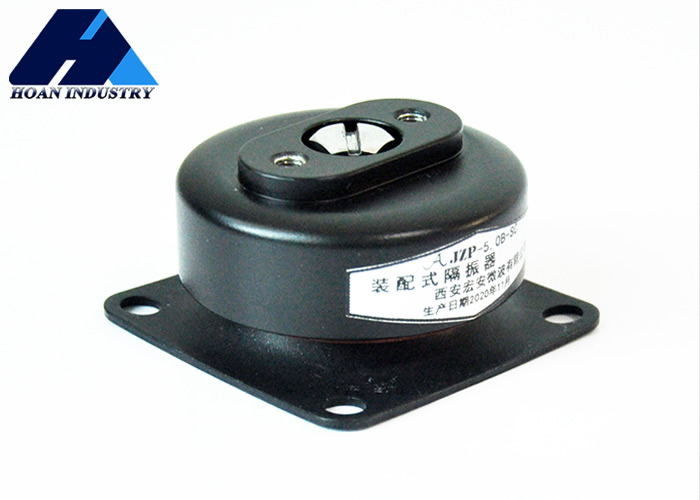

Name: JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.5B-SC
Availability: InStock

বাড়ি > পণ্য > রাবার শক শোষক >

JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation

Resonance Frequency 30 Hz Rubber Shock Absorber

Threaded Mounting Vibration Isolator

Bolt-on Installation JZP Series

উৎপত্তি স্থল:

চীন

পরিচিতিমুলক নাম:

Hoan

মডেল নম্বার:

JZP-2.5B-SC

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

JZP-2.5B-SC Rubber Shock Absorber with Resonance Frequency 30 Hz Threaded Mounting and Bolt-on Installation

পণ্যের বিবরণ

বৈশিষ্ট্য:

কম্পন বিচ্ছিন্নতা

মাউন্ট টাইপ:

থ্রেডেড

ইনস্টলেশন পদ্ধতি:

বোল্ট-অন

অনুরণিত ফ্রিকোয়েন্সি:

5-10Hz

সামঞ্জস্য:

সর্বজনীন

রঙ:

কালো

সংক্ষেপণ:

কাস্টমাইজড

অনুরণন ফ্রিকোয়েন্সি:

30 Hz

কম্পন বিচ্ছিন্নতা:

90% পর্যন্ত

আবেদন:

মোটরগাড়ি, যন্ত্রপাতি, শিল্প সরঞ্জাম

আপেক্ষিক পণ্য:

ব্যাকড্রাফ্ট ড্যাম্পার

বিশেষভাবে তুলে ধরা:

Resonance Frequency 30 Hz Rubber Shock Absorber

Threaded Mounting Vibration Isolator

Bolt-on Installation JZP Series

পেমেন্ট ও শিপিংয়ের শর্তাবলী

ন্যূনতম চাহিদার পরিমাণ

পরিশোধের শর্ত

এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম

সম্পর্কিত পণ্য

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

সেরা দাম পান

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

সেরা দাম পান

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

সেরা দাম পান

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86-29-88292913

যোগাযোগ করুন

পণ্যের বর্ণনা

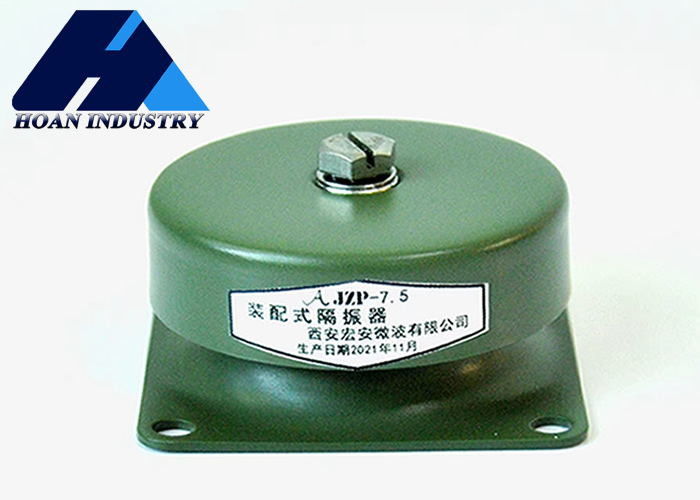

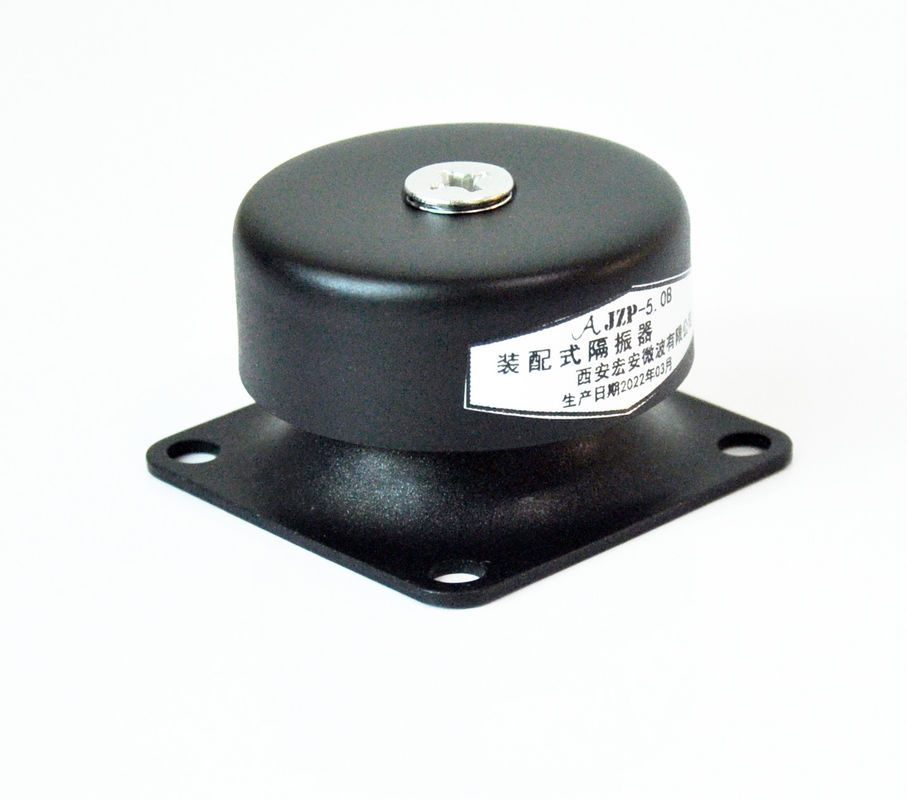

JZP-B-SC Series Rubber Shock Absorber for On-Vehicle Electronic Equipment

Redefine the Stable Foundation for On-Vehicle Electronic Equipment

Xi'an Hoan's JZP Series Vibration Isolators provide unmatched stability for sophisticated electronic equipment in special-purpose vehicles, including emergency rescue, mobile broadcasting, military communication, and environmental monitoring platforms.

Advanced Vibration Isolation Technology

Breaks the fatal energy transmission path of traditional rigid connections
Modular structure with high-performance elastic damping materials
Creates a low-pass filter effect for near-static microenvironment
Prevents loose screws, solder joint cracks, and component failure

Precision Design for Broad Applications

The JZP Series offers multiple models with varying load-bearing capacities and natural frequencies to precisely match equipment requirements, from lightweight data collectors to heavy cabinet-type servers.

Simple modular installation requiring no complex tools
Rapid deployment on vehicle chassis or brackets
Improves equipment integration efficiency and reliability

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration Performance

Impact Performance
