Name: JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B-SC
Availability: InStock

বাড়ি > পণ্য > রাবার শক শোষক >

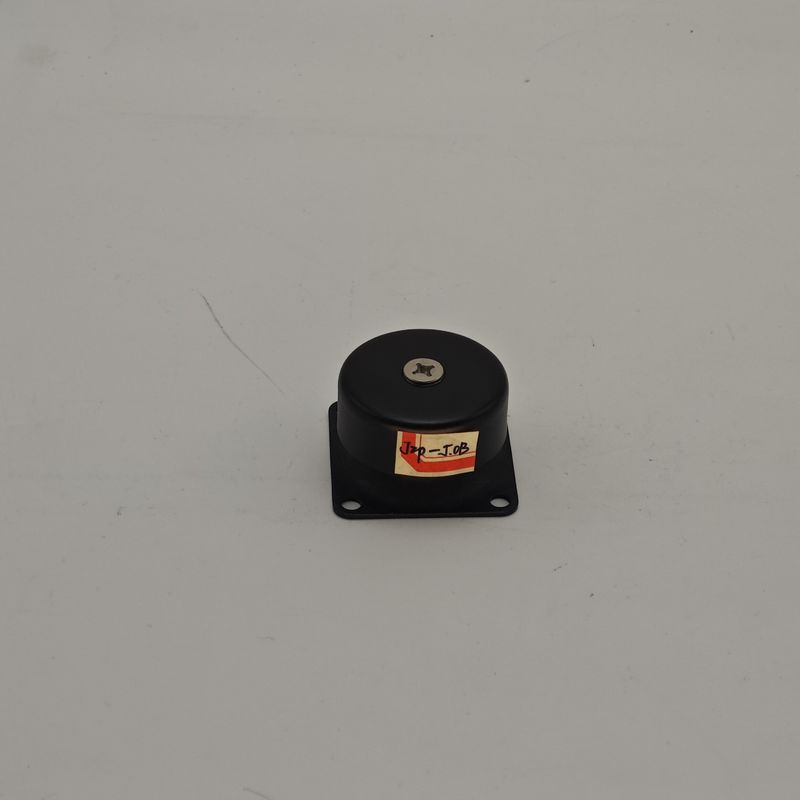

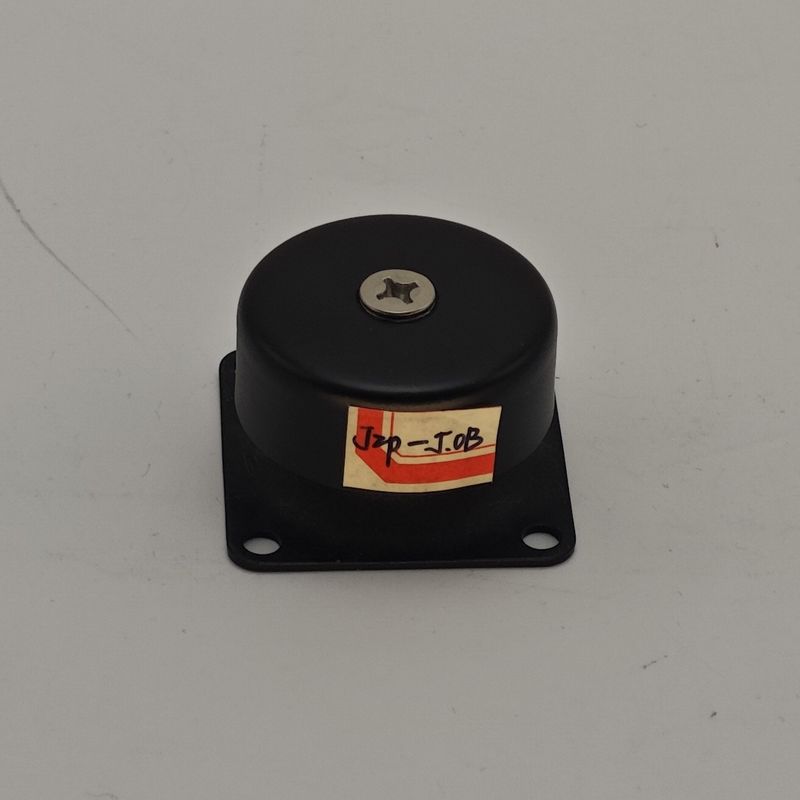

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

উৎপত্তি স্থল:

চীন

পরিচিতিমুলক নাম:

Hoan

মডেল নম্বার:

JZP-5.0B-SC

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

পণ্যের বিবরণ

কম্পন ফ্রিকোয়েন্সি ব্যাপ্তি:

10Hz থেকে 100Hz

বন্দর:

শি'আন বা নির্দিষ্ট

ওয়ারেন্টি পরিষেবার পরে:

অনলাইন সমর্থন

পারফরম্যান্স:

শকপ্রুফ

কম্পন প্রতিরোধের:

উচ্চ

বিপণনের ধরণ:

নতুন পণ্য 2025

বৈশিষ্ট্য:

বিস্তৃত কাজের ফ্রিকোয়েন্সি, দীর্ঘ জীবনকাল

ওএম:

হ্যাঁ

মাউন্ট টাইপ:

থ্রেডেড

ব্যবহার:

শক এবং কম্পন শোষণ

কাজের তাপমাত্রা:

-55 ~ +120

রঙ:

কালো

খরচ:

সাশ্রয়ী মূল্যের

বিশেষভাবে তুলে ধরা:

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

পেমেন্ট ও শিপিংয়ের শর্তাবলী

ন্যূনতম চাহিদার পরিমাণ

পরিশোধের শর্ত

এল/সি, ডি/এ, ডি/পি, ওয়েস্টার্ন ইউনিয়ন, টি/টি, মানিগ্রাম

সম্পর্কিত পণ্য

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

সেরা দাম পান

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

সেরা দাম পান

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

সেরা দাম পান

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86-29-88292913

যোগাযোগ করুন

পণ্যের বর্ণনা

JZP-5.0B-SC Vibration Isolators - Tested Rubber Shock Absorbers for On-Vehicle Efficiency Validation

JZP-B-SC Series

From Lab to Road: Rigorous Testing and Quality Validation of the JZP Series Vibration Isolators

The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.

Precise Evaluation in Laboratory Environments

During development, JZP Series prototypes undergo professional vibration testing:

Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
Random vibration tests simulate real road conditions to verify isolation efficiency
Shock tests evaluate ultimate load-bearing capacity and buffering performance

Environmental Adaptability Tests

The JZP Series undergoes extreme condition testing to ensure performance reliability:

High-low temperature alternating tests
Damp-heat resistance tests
Salt spray corrosion tests

Real-Vehicle Road Tests

Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration

Impact
