Stabilize Machinery, Prevent Drift, and Absorb Harsh Structural Shocks

In heavy industrial operations, mechanical vibration is a continuous threat to equipment longevity,operational precision, and workplace safety. Uncontrolled shaking from rotating or reciprocating machineslike pumps, air compressors, diesel engines, and electric generators causes structural fasteners to loosen,delicate electrical controls to fail, and metal joints to fatigue. Furthermore, high-frequency mechanical humstravel into building foundations, generating excessive structural resonance and hazardous ambient noise.
In many other machinery setups, reciprocating parts and doors create constant metal-on-metal impact,necessitating a durable, high-impact buffer to act as an end-of-travel stopper.
Are you experiencing these operational bottlenecks in your facility?
Equipment "Walking" and Drift: Vibrational forces cause unanchored or rigidly mounted machinery toslide, shifting alignment and creating safety hazards.
Excessive Noise Resonance: Structural vibration radiates through machine casings and foundations,violating environmental noise standards and accelerating structural fatigue.
Heavy Mechanical Collisions: Linear actuators, doors, or moving frames slamming at the end of theirtravel paths, resulting in loud noise and high physical wear.
The Hoan RVX-Type Single Male Stud Rubber Vibration Isolators provide the ultimate professionalsolution. Featuring a single threaded stud on one side and a flat rubber base on the other, these dual-purpose components function both as reliable vibration-isolating machinery feet and heavy-duty shock-absorbing bumper stops.

Product Gallery

Our standard cylindrical isolation mounts are manufactured under strict ISO and quality control standards toguarantee premium-grade industrial performance.
1.Hoan RVX-Type (Single Male Stud with Flat Base) Standard Configuration

The RVX-type features a high-tensile external threaded stud protruding from one side, bonded to aflat cylindrical rubber block. This flat base makes flush contact with floors or stopping surfaces, providing excellent stability and cushioning.(Figure 1: Hoan RVX-Type Single Male Stud Cylindrical Rubber Mounts-Featuring premium natural rubber with exceptional shear and compression damping capabilities.)

2. Multi-Angle Series Layout

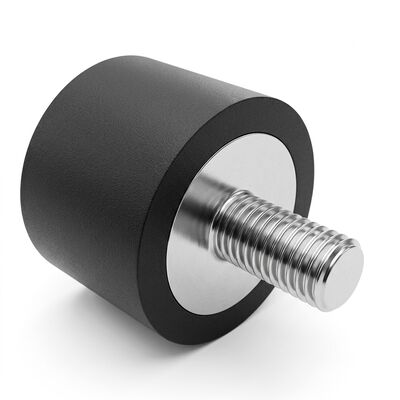

Our RVX series is offered in a wide range of standard diameters and height configurations, serving as stable,anti-slip machinery leveling feet and end-stops in heavy industrial setups.(Figure 2: Custom Multi-Angle Comparative Layout-Demonstrating stable leveling feet installation configurations and diverse mounting dimensions.)

Key Features Benefits

Dual Functionality (Damping Feet Bumper Stops): The flat rubber face allows these mounts to doubleas anti-slip machinery feet that isolate ground vibration, and as robust end-of-travel limit stops (buffers)that cushion physical impact in mechanical systems.
Single Male Stud Design for Speed and Simplicity: Featuring an external threaded bolt on only one end,these isolators can be instantly inserted through pre-drilled brackets or chassis frames and locked witha single hex nut. The flat base rests flat, avoiding damage to concrete floors or delicate machinerycasings.
Premium-Grade High-Resilience Natural Rubber: Formulated from high-performance natural rubbercompounds with standard Shore A 55 hardness. It delivers outstanding elasticity, superior tear strength,low compression set (high elasticity recovery), and resistance to aging and ozone.
Heavy-Duty Thermo-Chemical Vulcanization: Using advanced chemical bonding agents during high-temperature vulcanization, the steel or stainless steel endplates are molecularly bonded to the rubbercore. The bond strength exceeds the tensile strength of the rubber itself, ensuring the threaded studnever shears, strips, or detaches under high impact loads.
Anti-Corrosive Metal Hardware: Standard studs and plates are made of yellow- or blue-zinc-platedcarbon steel to resist rust and oxidation in humid and outdoor environments. Custom SUS304 or SUS316stainless steel hardware is available for marine, food-processing, or chemical washdown zones.

Detailed Specifications

Every Hoan RVX-type rubber mount is built to precise industrial dimensions. Below is the completespecification table matching our standard product matrix:

Universal Applications

The Hoan RVX-Type is highly favored across various manufacturing and equipment installations forits dual-mode utility:
Air Compressors Pumps: Used as heavy-duty support feet to damp reciprocating shaking, preventingthe machine from sliding across concrete surfaces.
Diesel Gasoline Generators: Placed under engine bases to block low-frequency engine rumbles androtational forces.
Welding Machines Power Inverters: Installed as bottom chassis spacers to shield fragile internal PCBsfrom operational shock.
Moving Gates, Sliding Doors Chutes: Functioning as a high-density, anti-wear buffer stop to absorbmechanical energy and deaden operational slam noise.
Actuators Conveyor Stop Blocks: Serving as travel-limit stoppers to cushion heavy pallets, movingtables, or pneumatic cylinders at the end of their strokes.
General Industrial Machinery Leveling: Ideal for cooling fans, laboratory equipment, centrifugalseparators, and specialized electronic enclosures.
